Equipment per channel:
Electronically balanced input via XLR
Gain 0...+66 dB switchable in 12 steps of 6 dB
each
Deactivatable fine adjustment of gain with center potentiometer +/- 5 dB
Deactivatable Lo-Cut, 12 dB/oct ., with variable use 12...250 Hz
Noise -129 dB at 60 dB amplification
Pad switch for -12 dB pre -attenuation
Programmable intelligent muting system
Switchable 48 volt phantom power
Switchable phase reversal

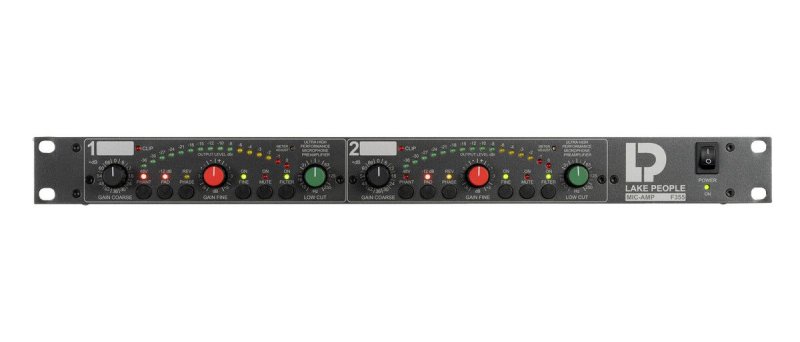

16-step fast level display, 0 … -36 dBr can be calibrated on the front
Additional separate clip display

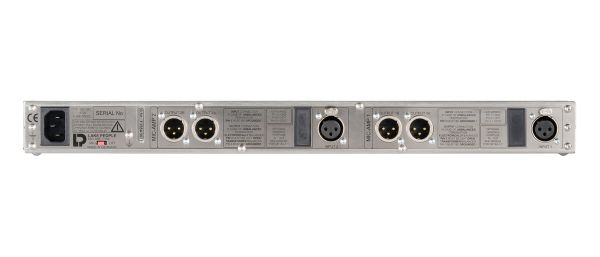

2 x balanced outputs via XLR
