FEATURES
Headphone outputs: 2x unbalanced with 6.3 mm jack, 1 balanced with 4-pin XLR.
+/- 18 dB pre-gain for optimal adjustment of the HPA V550 to the source and headphones.
3 analogue stereo inputs: 2 x unbalanced via RCA, 1 x balanced via XLR.
4 powerful amplifiers, 6400 mW Pmax into 50 ohms, 21 V RMS into 600 ohms.

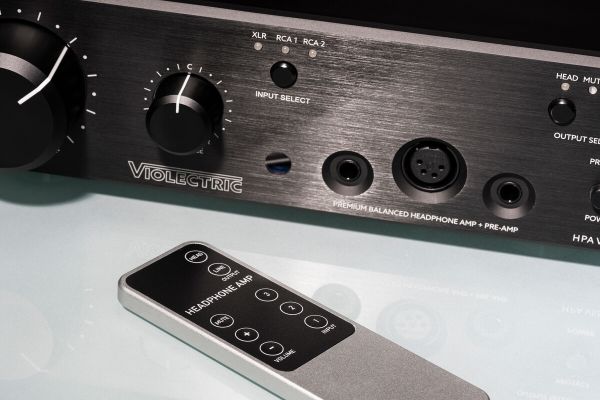

Remote control for volume, mute, input selection, resampling, output selection.
Adaptation of the line-out signal to the following devices in the range +/- 18 dB.
Monitoring of the headphone outputs for DC voltage and overload.

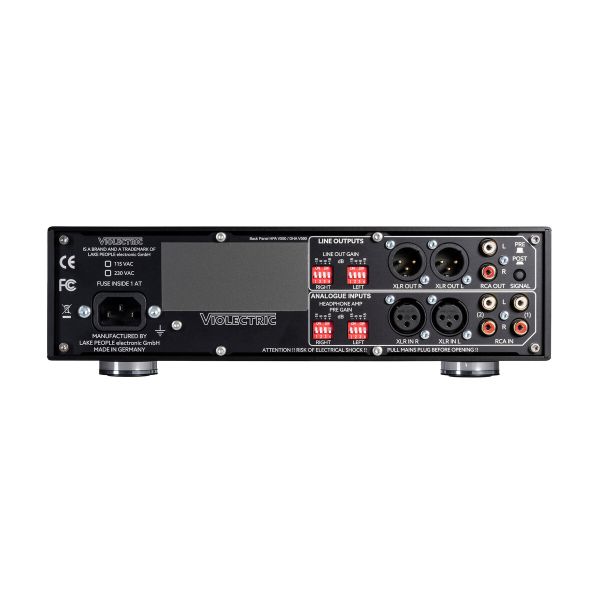

Line Out: 1x unbalanced via RCA, 1x balanced via XLR.
2 toroidal transformers, > 35,000 uF filter capacity.
Headphone path and line-out path can be switched separately.
Motorized volume controls.

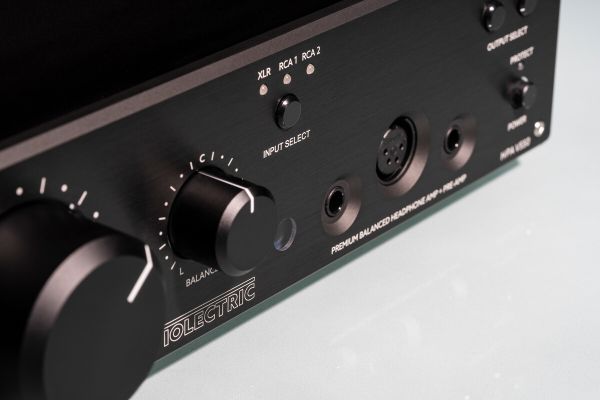

Balance control.
