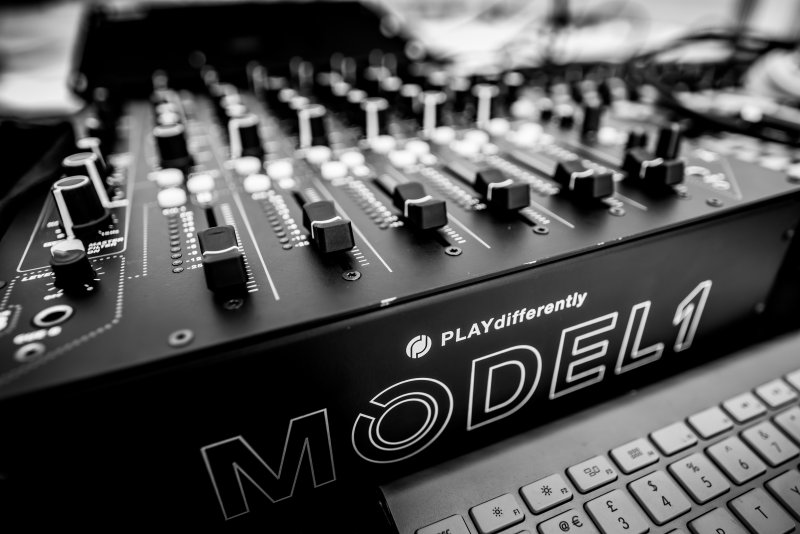

Custom TKD 60mm faders. These twin rails faders have been carefully chosen to ensure long life and smooth operation and feature a heavy feel for greater precision.
Fully balanced main mix bus (usually only found in very high end analogue studio consoles) – resulting in >110dB of dynamic range, improved hum rejection, lower noise and crosstalk.
A 2-Band equaliser allowing the user to adjust the frequency response of the Booth monitors to suit their own preference.
Smooth intuitive controls matched with warm pure analogue circuitry.
Beautifully smooth components each controlling one specific function for intuitive on-the-fly creative performances.
Built in the UK with our partners DigiCo and Allen & Heath using alloy/steel chassis for maximum strength and minimum weight optimised for touring, club and performance situations.

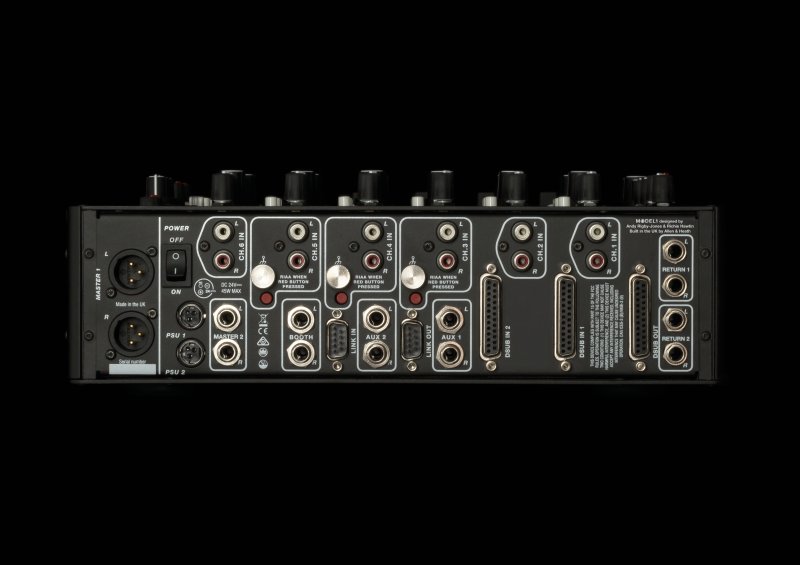

Two fully balanced TASCAM DB25 inputs receiving all 8 Stereo channels for rapid connections to external soundcards and added flexibility in club installs.
Fully balanced TASCAM DB25 output for sending Master, Aux 1 & 2 Sends and Cue B channels down a single connector for rapid connections to external soundcards and added flexibility in club installs.
Mounted on the front panel at the top of the Master section the RECORD OUT - 3.5mm TRS Jack socket feeds the post Master EQ signal as a pre- fader record output. Nominal level is –2dB
