Equipment per channel:
Ultra High Quality Class-A input via XLR
Gain 0...+66 dB switchable in 12 steps of 6 dB
each
Activatable fine adjustment of gain with center potentiometer +/- 5 dB
Activatable Lo-Cut, 12 dB/oct., with variable attack 12...250 Hz
Noise -129 dB at 60 dB amplification
Pad switch for -12 dB pre -attenuation
Programmable intelligent muting system
Switchable phantom power 48 volts
Switchable phase reversal
16-level fast level display, 0 … -36 dBr calibratable on the front
Additional separate Clip indicator

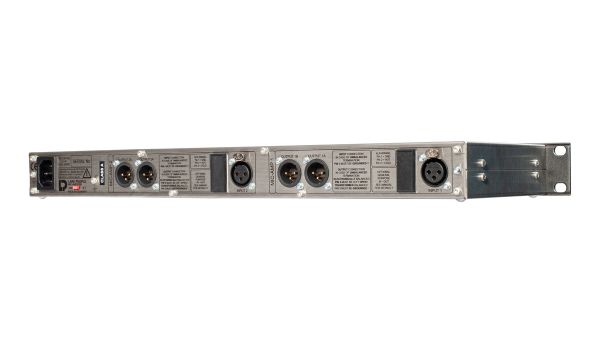

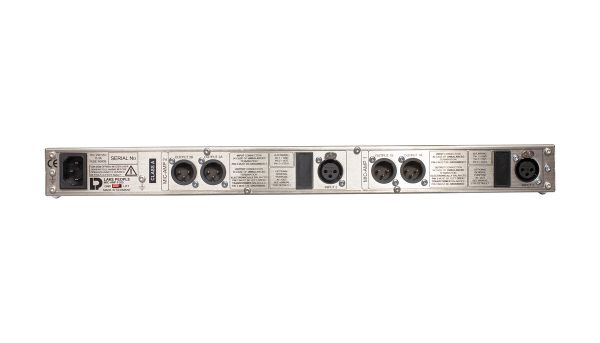

2 x balanced outputs via XLR
