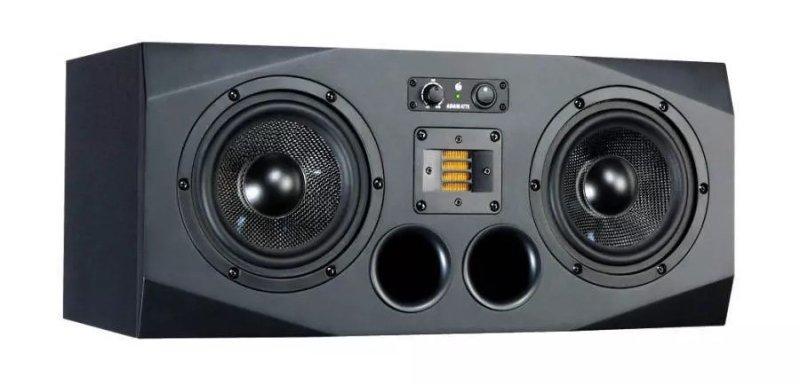

A77X Near-/Midfield Monitor (B-Side)

Driver technology Like all models of the AX, the A77X features the ADAM proprietary X-ART tweeter. The two 7” woofers are identical with that of the A7X. With their large voice coils (1.5”) and powerful amplifiers they are capable of both very high maximum sound pressure levels as well as very deep registers. The woofers do not cover the same frequency bands: while one of them is responsible for the (sub-) bass frequencies up to about 400Hz, the other takes over most of the midrange. Amplifiers / controls Each driver has its own dedicated amplifier. A 50W A/B amp is responsible for the X-ART tweeter, while the bass-/ midwoofers are driven by a 100W PWM amp each. The front panel includes a power switch and a control for the volume that retains the volum
