A8X Near-/Midfield Monitor

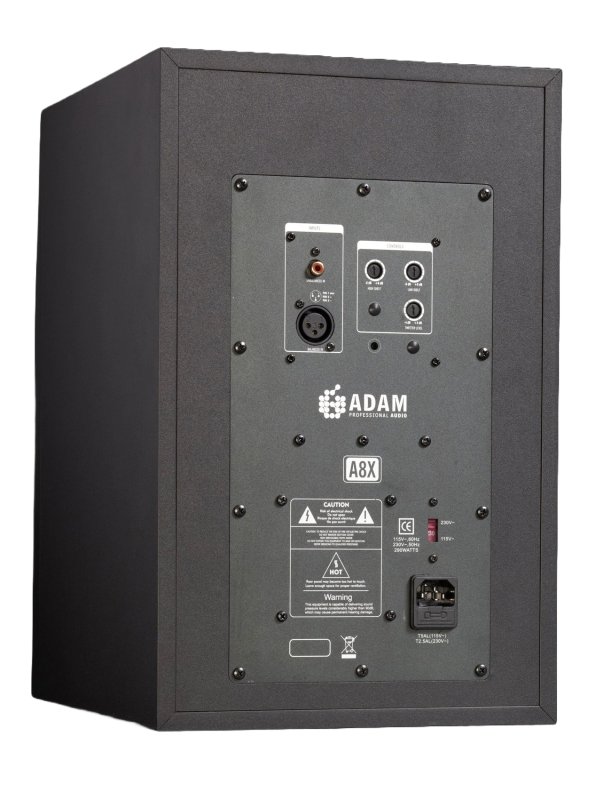

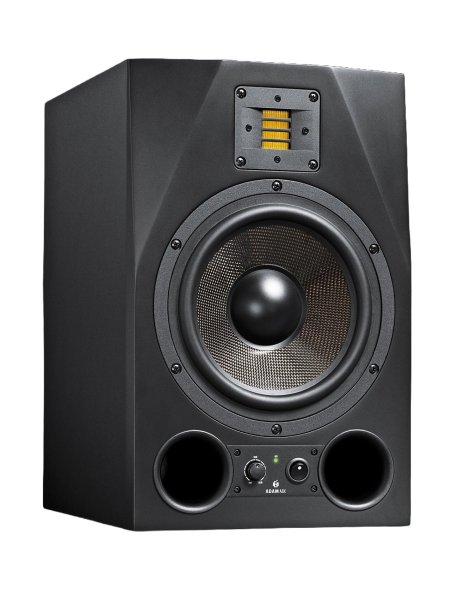

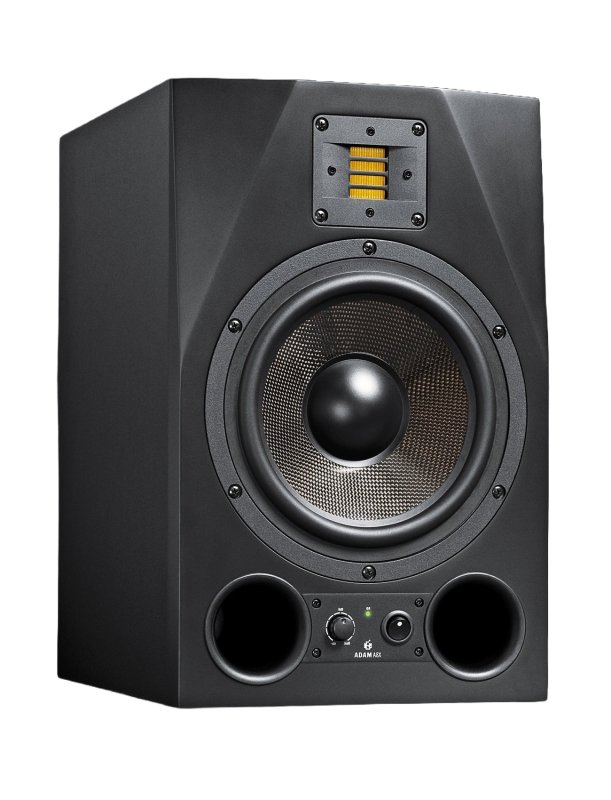

The A8X is equipped with the X-ART tweeter and a large [8.5?] midwoofer, a combination that adds both a very deep and yet very tight bass response to the unsurpassed reproduction qualities of the ADAM proprietary tweeter: a licence to thrill. Cabinet- and bass reflex-construction Like the other AX Series models, the upper corners of the A8X are slanted to minimize reflections. The very large, double bass reflex tubes on the front have been specifically designed to perfectly match the midwoofer with its large voice coil. Amplification and controls With a 50W A/B amplifier for the tweeter and a 150W PWM amplifier for the midwoofer, the A8X has power in abundance and is the brawny monitor of the AX-Series. On the rear panel are several controls: a gain for the high frequencies [± 4 dB] and two shelf filters for the high and low frequencies. There are both XLR [balanced] and RCA [unbalanced] connectors on the rear panel of the speaker, which allow the A8X to be used in almost any application.
