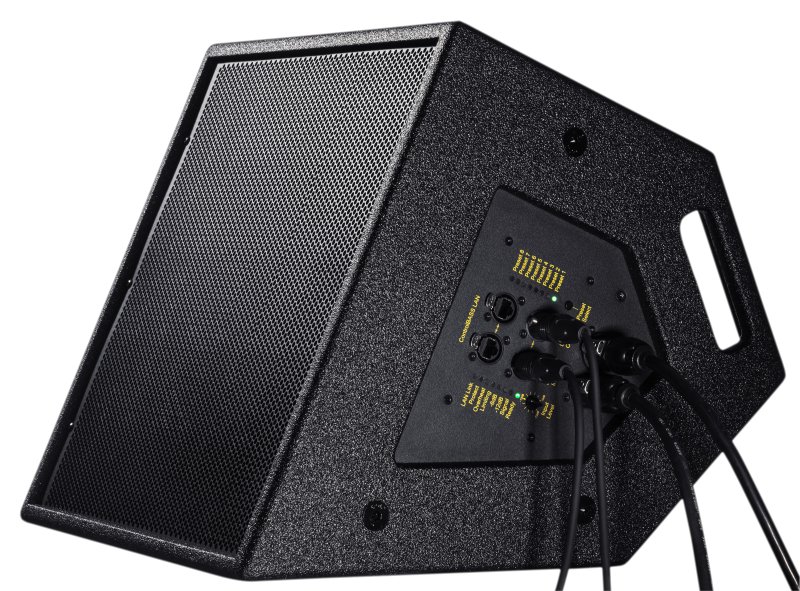

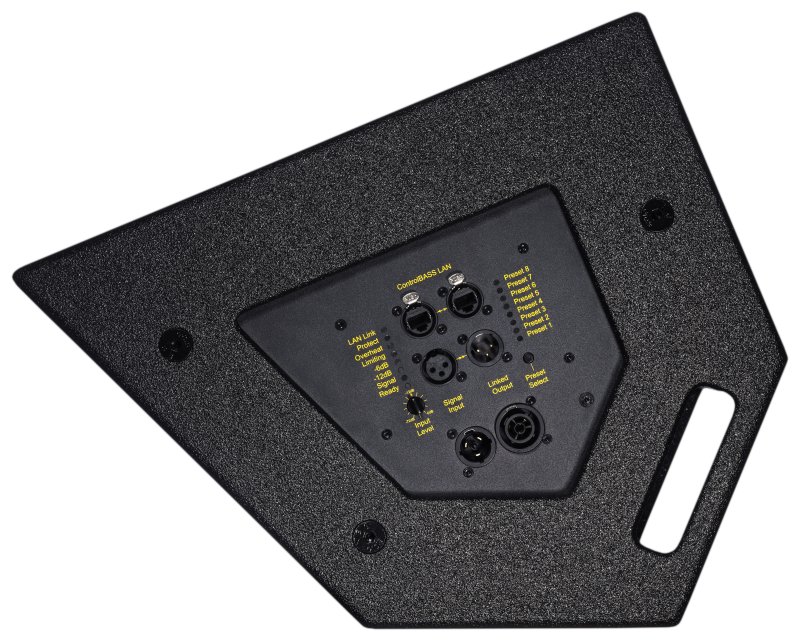

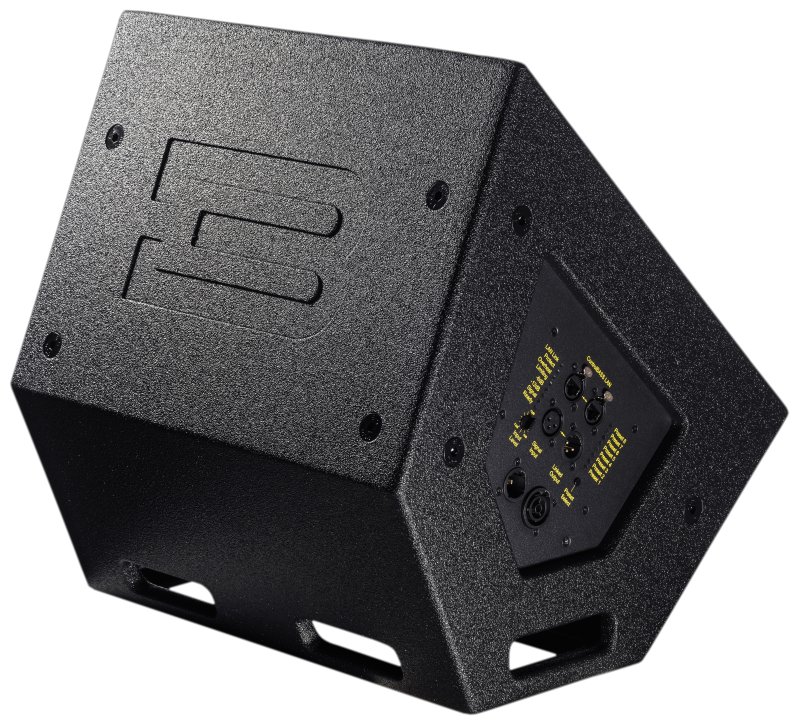

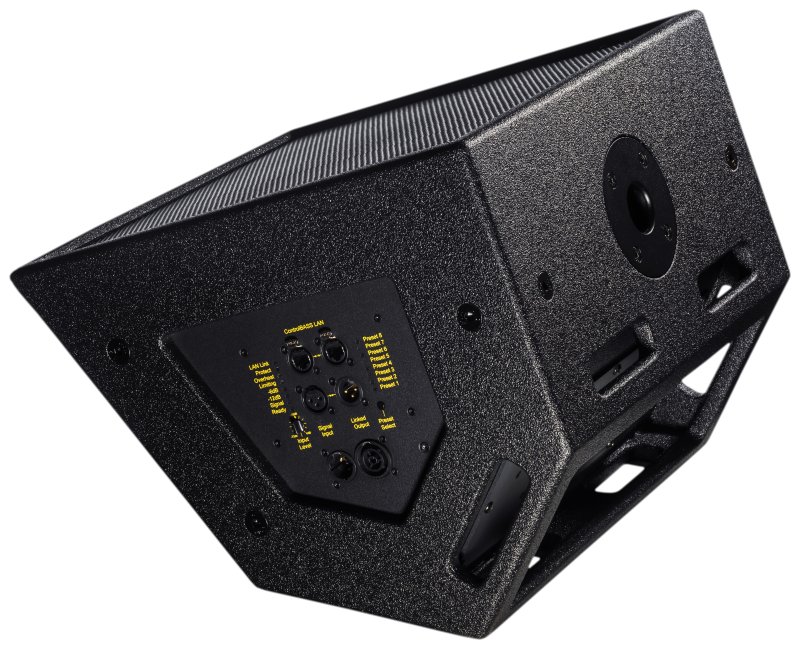

Compact, Co-Axial, Bi-Amped, 12”, 2-Way, Multi-Angle Monitor Wedge - Frequency Response (±3 dB): 60Hz - 19kHz (Full Range). - Maximum Sustained Output: 124dB SPL, 1m, 2pi, half-space. - Max SPL (Peak): 127 dB. - Nominal Dispersion (°H x °V): 80 x 80 (Symmetrical Conical). - Monitor Upward Angles: - 0° (Pole Socket/Front Fill). - 22.5° (Table/Sub). - 45° (Seated Performer). - 67.5° (Standing Performer). ELECTRICAL: - Amplifier: Class D, 1200 W, 2 Channels 850+350. - DSP: Integrated comprehensive DSP provides all necessary high-pass and low pass filters, equalization, phase alignment and limiting. - Electrical Connectors, Amplifier: Neutrik powerCON True 1 TOP with Pass-Through. - Electrical Connector, Mains: NEMA 5-15 (Edison) standard 3-pin grounded plug. - Voltage Operating Range: 100 - 240V Auto-sensing, auto switching. - Current Draw, Nominal: 1.4A average with music. - Signal Input Connector: XLR-F. - Signal Output Connector: XLR-M pass-through only. PHYSICAL: - Enclosure Type: 2-way full-range/mid-high. Direct radiating sealed LF section, Co-Axial HF section. - Transducer, LF: 1 x 12 in. diameter (300 mm) neodymium motor woofers with 3 in. (76mm) copper winding voice coil. - Transducer, HF: 3 in. (76mm) diaphragm compression driver on 1.4 in. throat Co-Axially mounted 80-degree conical horn. - Cabinet Construction: 15 mm Birch plywood. Equipped with 6 handles. Includes a 35mm steel pole socket. - Dimensions (HxWxD): 13.5 in. x 16.5 in. x 15.5 in. - Net Weight: 38 lbs (est). - Shipping Weight: 43 lbs (est). - Exterior Finish: Black Weatherproof bonded high-pressure polyurea. - Grille: Perforated, Powder-coated Steel with Hydrophobic Backing. |
