FEATURES
256 finely tuned volume levels.

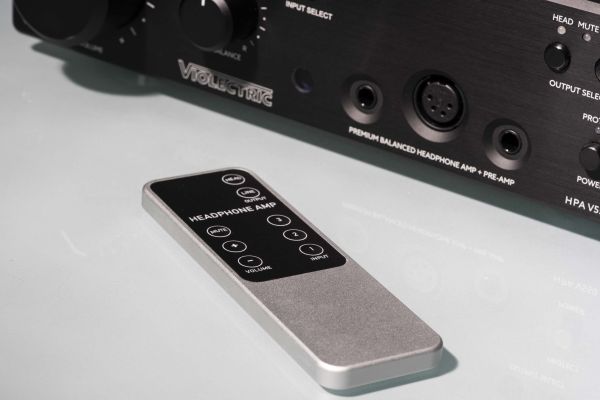

Remote control for volume, mute, input selection, resampling, output selection.
Motorized volume controls.
balance control.

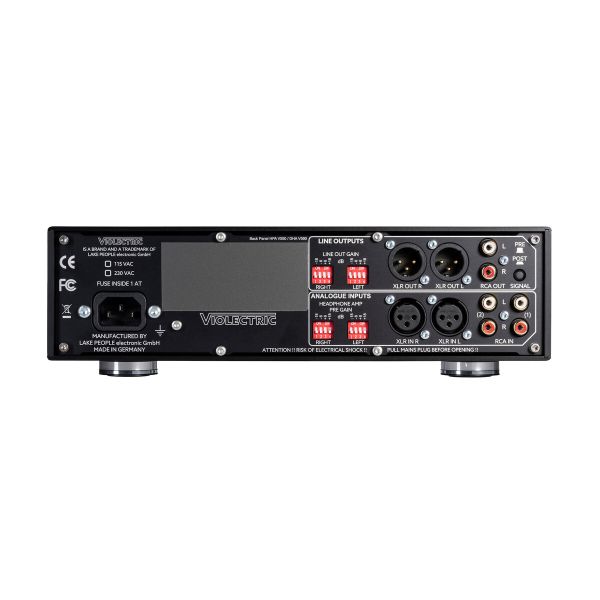

3 analogue stereo inputs: 2 x unbalanced via RCA, 1 x balanced via XLR.
+/- 18 dB pre-gain for optimal adjustment of the HPA V550 Pro to the source and headphones.
4 powerful amplifiers, 6400 mW Pmax into 50 ohms, 21 V RMS into 600 ohms.
Monitoring of the headphone outputs for DC voltage and overload.
Headphone path and line-out path can be switched separately.
Headphone outputs: 2x unbalanced with 6.3 mm jack, 1 balanced with 4-pin XLR.
Line Out: 1x unbalanced via RCA, 1x balanced via XLR.
Adaptation of the line-out signal to the following devices in the range +/- 18 dB.
2 toroidal transformers, > 35,000 uF filter capacity.
