Full Range Reproduction: Covers all audible frequencies from 25 Hz to 18,000 Hz.
Versatility: Ideal for live sound reinforcement and high-end audio systems.
4-Way Active: Dedicated drivers and amp channels for each frequency range for unbeatable dynamic resolution.
Big Impact: Minimal physical offset of drivers creates minimal phase offset for a tight, punchy sound.
Superior Sound Localization: One source point provides superior imaging for an immersive listening experience.
High Efficiency and Power Handling: Suitable for larger spaces without quality compromise
Phase Aligned: Seamlessly integrates with other BASSBOSS speakers,

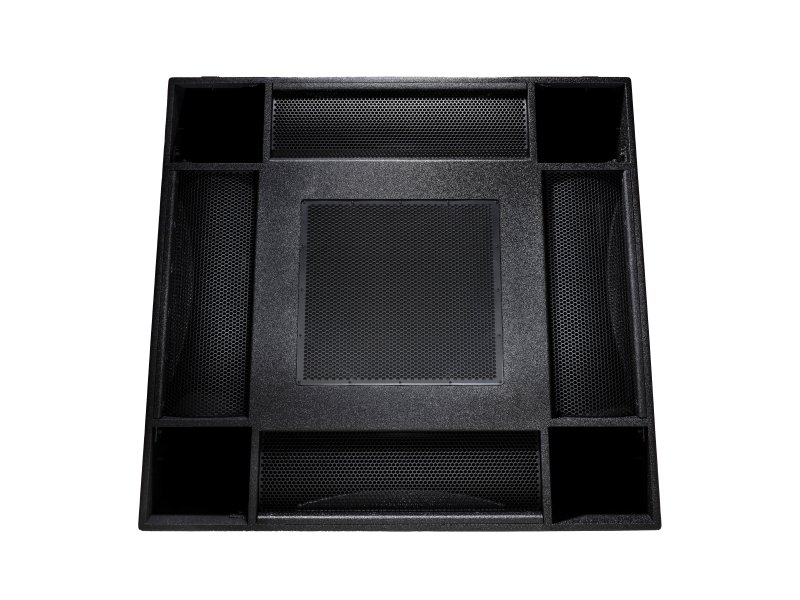

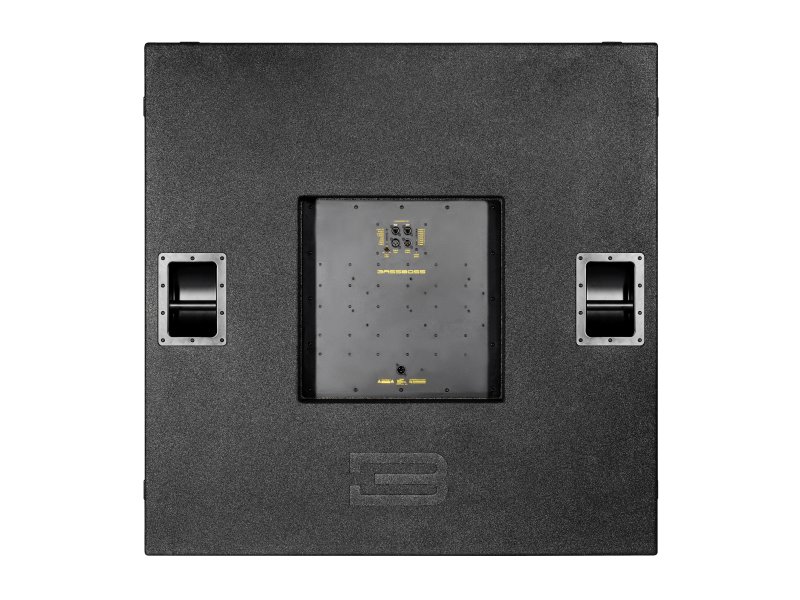

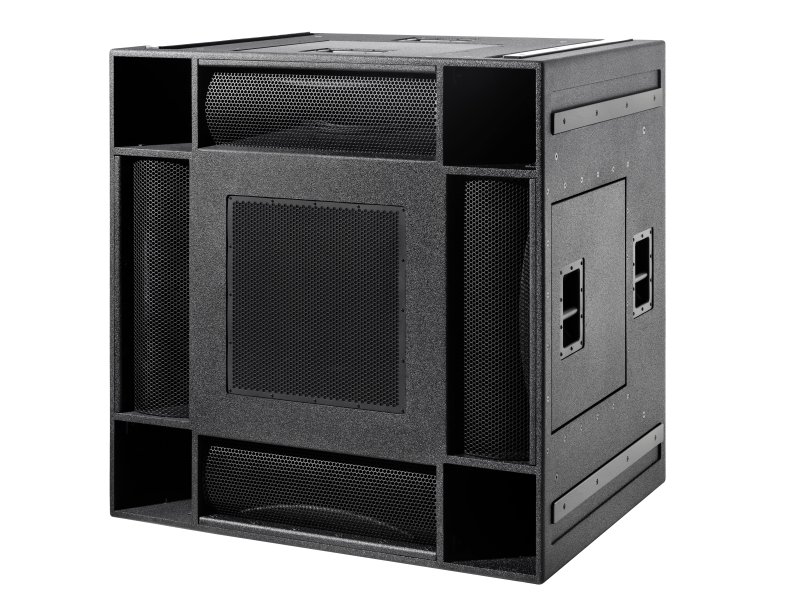

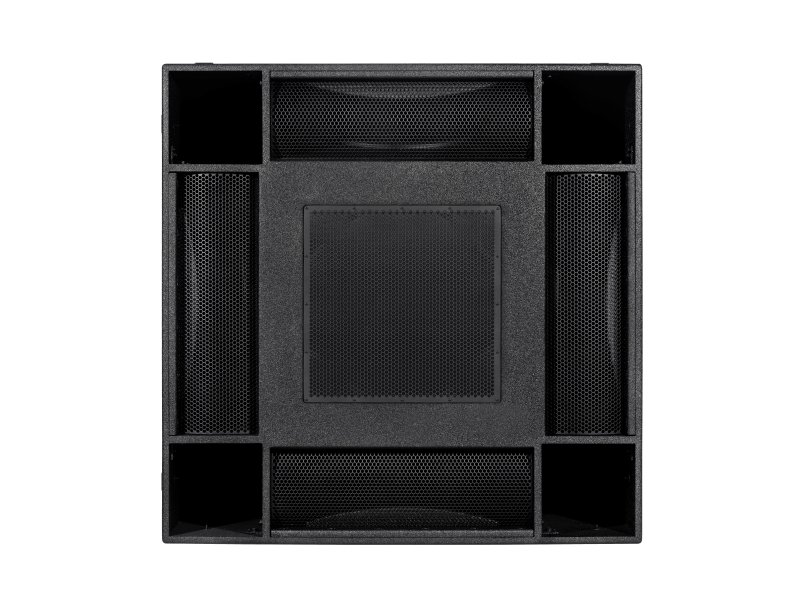

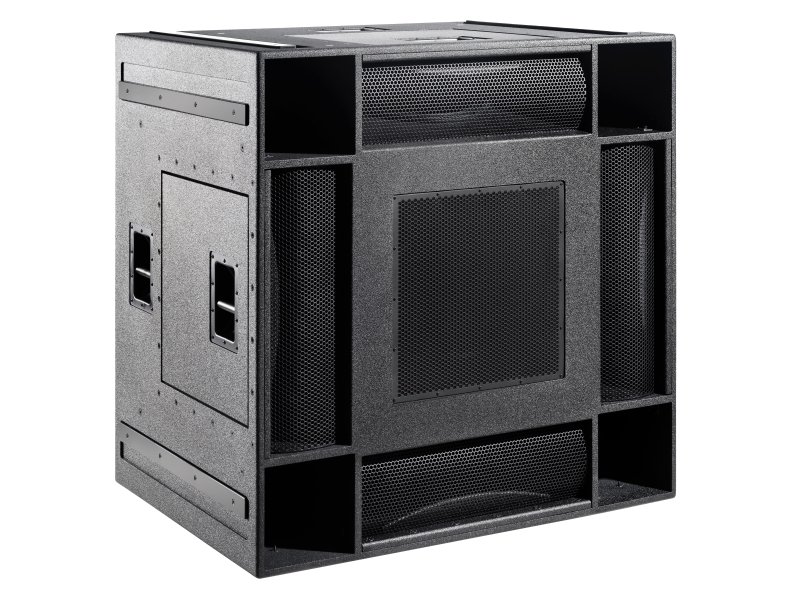

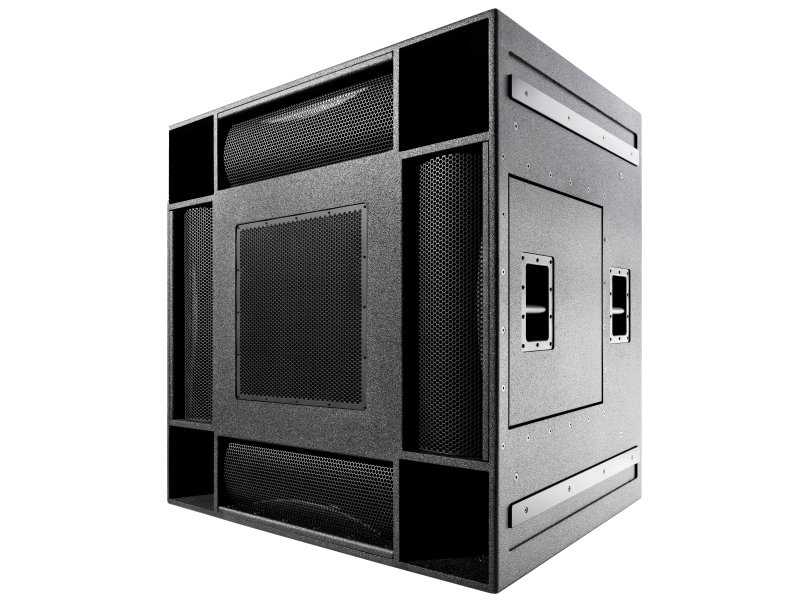

Quintuple 18” 4-Way Co-Axial Active Loudspeaker.
Frequency Response: (±3 dB) 25 - 19,000Hz.
Maximum Measured SPL 142 dB 1m (half-space).
Max calculated SPL (Peak) 145 dB 1m (full-space).
Nominal Dispersion (H° x V°) 60 x 40 (25 down, 15 up).
Amplification 7500W Class D, 5000W LF, 1600W MLF, 600W MHF, 300W HF.
Current Draw, Nominal 120V: 13.75A (nominal); 240V 7A (nominal).
Processing Integrated comprehensive DSP. 96kHz sampling rate with 8 pushbutton.
presets. All presets include high pass filters, low pass filters, phase alignment.
equalization and multi-stage limiting. Storage capacity for up to 100 presets.
Enclosure Type 4-Way Full-Range Single Axis Point Source. Vented Short-Horn (6th order).
Low Frequency section, Co-axially positioned acoustic suspension Mid-Bass section with a Co-axially horn-loaded Midrange and High Frequency section through its center.
Transducer, LF 4 x 18 in. diameter (450mm) neodymium motor woofers with 4 in. (100mm) voice coils, waterproof cones
Transducer, MF 18 in. diameter (450mm) neodymium motor bass driver with 4” (100mm) voice coil.
Transducer, HF Co-Axial Compression driver featuring a 4 in. (100mm) diameter Ring Diaphragm Midrange and a Co-Axially positioned 2.5” (64mm) voice coil. Ring Diaphragm Tweeter exiting
