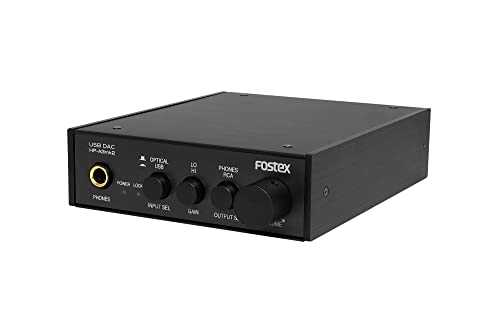

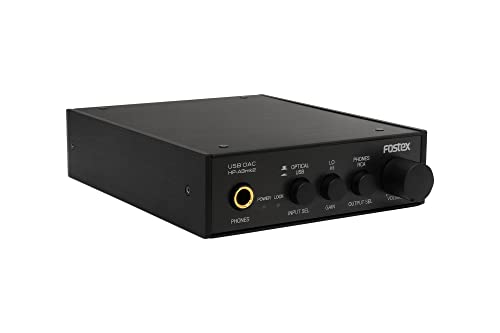

HP-A3 MK2 USB Audio Interface

Name: HP-A3 MK2 USB Audio Interface
Brand: Fostex USA
SKU: AMS-HP-A3MK2

Model: AMS-HP-A3MK2

UPC: 636827309424

Please log in to see your price

Dealer locator

The HP-A3mk2 is a USB DAC that operates on USB bus power. USB audio and optical digital audio signals from a PC can be converted to analog signals and output from the line output and headphone output.

About This Product

Description:

The HP-A3mk2 is a USB DAC that operates on USB bus power. USB audio and optical digital audio signals from a PC can be converted to analog signals and output from the line output and headphone output. It operates with the USB Audio 2.0 driver of a PC (Windows or Mac OS), and can be used immediately after connecting the USB cable and performing with simple set-tings. A high quality DAC chip is used, the ESS Technology's ES9016K2M, and the supported sampling frequency is greatly enhanced from 96 kHz of HP-A3 to 192 kHz. This allows users to enjoy higher quality sound without sacrificing usability. Analog circuitry has also been redesigned to match the higher supported sampling frequency, and features improvements in THD (Total Harmonic Distortion) and other features that bring performance on par with that of higher-end products. The HI position provides a 10 dB increase in volume compared to the LO position. The HI position is effective for low-level input signals and can be used with a variety of playback sources.

ES9016K2M from ESS Technology is used as the DAC chip:

Using the high-quality DAC chip supported sampling frequency has been greatly enhanced to 192 kHz. Users can enjoy higher quality sound without sacrificing ease of use.

Further improved analog circuitry:

The analog circuitry has been newly designed to match the higher supported sampling fre-quency, and has achieved performance of high-end products, including improved THD (total harmonic distortion).

Gain switch to accommodate various playback sources:

The headphone output amplifier gain can be switched between HI and LO positions. The HI position provides 10 dB increase in volume over the LO position. The HI position is effective for low-level input signals and can be used with a variety of playback sources.

more

Specifications
